This gear calculator is set as default to the 2006 FJR1300

When first run, it shows the mph for every 1000 rpm in each gear.

If you wish to set it for any other bike,
Select:

• number of "fixed" transmission ratios
• number of gears

To reset everything back to the defaults, use the "Default to 2006 FJR1300" link.

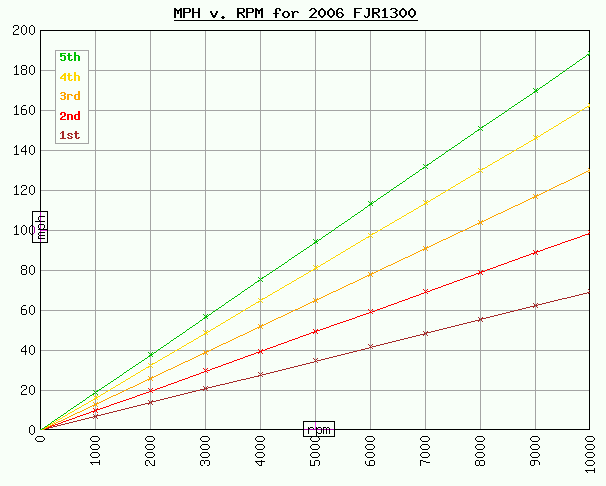

By default, the table on the right will show the mph for each 1000 rpm in all the gears. The increment and the highest rpm may be changed by editing the "rpm increment" and "maximum rpm" values and pressing the "submit" button

There is some error checking on inputs. If it thinks an entry is incorrect, it will highlight the area in red and ask for it to be corrected.

Current limits:

Numbers of Gearings Number of transmission ratios Number of gearbox ratios Transmission Ratios Which Input Output 1st 2nd 3rd 4th Gearbox Ratios Gear Input Output 1st 2nd 3rd 4th 5th Wheel/tyre Dimensions Parameter Value Units Wheel diameter inches Tyre width mm Aspect ratio percent

Display Parameters rpm increment max rpm max mph   0 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 1st 0.00 6.92 13.84 20.76 27.67 34.59 41.51 48.43 55.35 62.27 69.19 2nd 0.00 9.87 19.74 29.62 39.49 49.36 59.23 69.10 78.98 88.85 98.72 3rd 0.00 12.98 25.97 38.95 51.94 64.92 77.90 90.89 103.87 116.86 129.84 4th 0.00 16.25 32.50 48.75 65.00 81.25 97.50 113.75 130.00 146.25 162.50 5th 0.00 18.85 37.69 56.54 75.39 94.23 113.08 131.92 150.77 169.62 188.46 Default to 2006 FJR1300
