Atrophy Gearing, 2004 FJR1300

Start date 07/01/2016 12:18    Last updated 22/05/2022 13:17

This gear calculator is set as default to the 2004 FJR1300

When first run, it shows the mph for every 1000 rpm in each gear.

If you wish to set it for any other bike,
Select:

then press "submit". You will be returned a page with the correct number of boxes to fill with all the tooth counts of all the gears (or chain wheels). Fill these in, and the parameters for the rear wheel and tyre, then press "submit" again. Any non-default entries will be highlighted.

To reset everything back to the defaults, use the "Default to 2004 FJR1300" link.

By default, the table on the right will show the mph for each 1000 rpm in all the gears. The increment and the highest rpm may be changed by editing the "rpm increment" and "maximum rpm" values and pressing the "submit" button

There is some error checking on inputs. If it thinks an entry is incorrect, it will highlight the area in red and ask for it to be corrected.

Current limits:

ParameterRangeUnits
Wheel diameter 1 to 100inches
Wheel width 1 to 500mm
Wheel aspect ratio10 to 1000%
Number of transmission ratios 1 to 10
Number of gearbox ratios 1 to 10
Number of teeth on any gearwheel 1 to 1000
Maximumn rpm10 to 50000rpm
Rpm increment10 to 10000rpm
Maximum speed (or leave blank)40 to 300mph

Numbers of Gearings
Number of transmission ratios
Number of gearbox ratios
Transmission Ratios
WhichInputOutput
1st
2nd
3rd
4th
Gearbox Ratios
GearInputOutput
1st
2nd
3rd
4th
5th
Wheel/tyre Dimensions
ParameterValueUnits
Wheel diameterinches
Tyre widthmm
Aspect ratiopercent
Display Parametersrpm incrementmax rpmmax mph

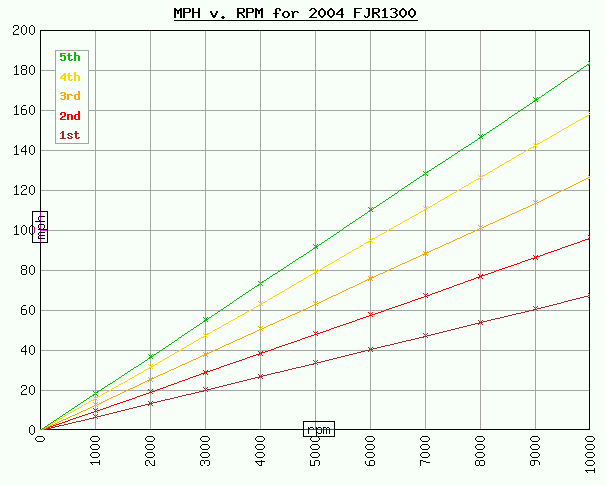

 010002000300040005000600070008000900010000
1st0.006.7313.4620.2026.9333.6640.3947.1253.8560.5967.32
2nd0.009.6119.2128.8238.4248.0357.6367.2476.8486.4596.05
3rd0.0012.6325.2737.9050.5363.1775.8088.43101.06113.70126.33
4th0.0015.8131.6247.4363.2479.0594.87110.68126.49142.30158.11
5th0.0018.3436.6755.0173.3591.68110.02128.36146.70165.03183.37
